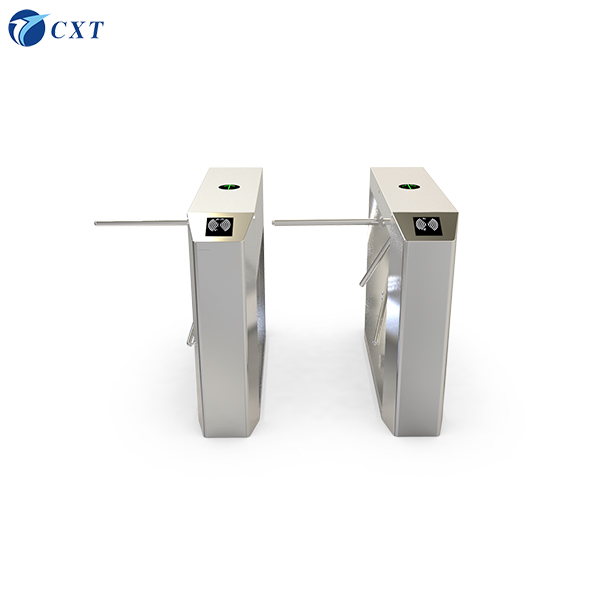

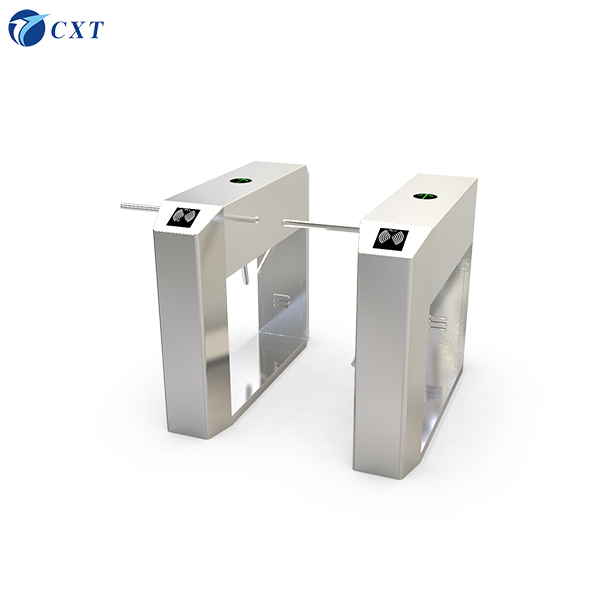

Brushless Motor Smart Standard Tripod Turnstile CXT-SW120
Product Specifications
| Model | CXT-SW120 Tripod turnstile |
| Specifications | 1200*220*980mm |
| Pole length | 510mm |
| Process | Produced by bending, cutting, welding, polishing, grinding |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |
Product Features
The Chuangxintong CXT-SW120 fully automatic brushless Tripod turnstile features a newly upgraded design with sophisticated chassis, card swiping prompt light, and personalized dynamic passage indicators.
Key Advantages
- Modular design for easier maintenance
- Upgraded, more sophisticated chassis
- Brushless motor for extended lifespan
- ARM control technology for powerful functionality
- Enhanced buffering to prevent collisions
- Instant reverse thrust deters illegal operation
- High cost-performance ratio
Advanced Functions
- Fault self-check with digital screen prompts
- Automatic drop when power is off, raise when power is on
- Dynamic passage indication with gentle rotation
- Automatic correction to horizontal position
- Unique card swipe window with pass prompt
- High-brightness dynamic passage indication
- Smooth, noiseless operation with zero mechanical wear
- Anti-collision buffer and alarm system
- Anti-tailgating with reverse thrust activation
- Optical working principle prevents multiple passages
- Anti-reversal function with automatic reset
- Memory function for faster passage processing
Technical Parameters
- Shell material: SUS304# stainless steel
- Processing: Laser, bending, cutting, welding, wire drawing, polishing
- Size: 1200*220*980mm
- Gate rod: 510mm length, ￠38 stainless steel tube
- Motor: 24V/30W DC brushless
- Opening time: 0.2 seconds
- Passing speed: ≥30-40 people/minute
- Temperature range: -40℃ to 80℃
- Humidity range: 5%-95%
- Suitable for indoor and outdoor use
Comparison with Common Models
| No | Name | Common series | Pentium series |
|---|
| 1 | Rotation mode | push | electric |
| 2 | Positioning principle | optical coupling fixed point | 1/500 decoding |
| 3 | Positioning mode | horizontal position | not locked |
| 4 | Transmission mode | solenoid valve | motor |
| 5 | Lifting rod mode | manual | automatic |
| 6 | Buffer | no | yes |
| 7 | Anti-reverse | no | yes |
| 8 | Noise | high | no |
| 9 | Mechanical wear | high | no |
| 10 | Illegal alarm | no | yes |
| 11 | Passage prompt | no | yes |
| 12 | Service life | 1-3 years | 5-10 years |
Frequently Asked Questions
Can machines be used outside?
With waterproof function, could be used outside
What is the warranty for the machine?
Within two years, if any problems, we will offer the accessories (but you pay the freight cost).
When will you make the delivery?
Regular products: 3-5 days
How does your factory control the quality?
Quality controlling from the beginning to the ending.
What is your MOQ?
Any quantity is acceptable.
